Product Case Studies

RDC case

RDC

RDC Tel Alliance main road.GIF

Tel Alliance Dust Suppresion

PROJECT- 2014

Heavily used Haul Road Dust Suppression over the summer season.
The customer’s requirements was to minimise the use of water carts on this very large, 28km, site. The haul road was preloaded with sand 3-20m deep and due to the difficult material needing to be treated (fine sands), the Gravel Lock program included more frequent applications using less product.



Category : Instant Dust Suppression

Location  : New Zealand

Industry   : Highway Construction

Solution   : Instant Dust Suppression

Logo RDC   panatoone 358 copy.png

Product Used

RDC

RDC FNDC water truck spraying RDC out.GI

Far North District Council Dust Suppression

PROJECT-2014/2020

Dust Suppression on Gravel Roads. ESTABLISHED CLIENT OF 6 YEARS – FNDC Council. Multiple sites all over Northland, New Zealand.

The Far North District Council has been using Gravel Lock’s RDC on their gravel roads each summer season for the past six years.



Category  : Instant Dust Suppression

Location   : New Zealand

Industry    : Industry Roading

Solution    : Dust Suppression

Logo RDC   panatoone 358 copy.png

Product Used

RDC

RDC Te Arai Golf Course.GIF

 Golf Course Dust Suppression

PROJECT- 2017

Tara Iti Golf Course is an exclusive privately owned golf course in Mangawhai, New Zealand.  The brief was to instantly reduce/eliminate dust for clients and staff driving around the cart roads and internal roads.



Category  : Unsealed Road Stabilization

Location   : New Zealand

Industry    : Secondary Roading

Solution    : Dust Suppression

Logo RDC   panatoone 358 copy.png

Product Used

RDC

RDC Placemakers yard trucks filling the

PlaceMakers Dust Suppression

PROJECT- 2013 – February 2020



Dust Suppression at a busy Truss and Frame Yard

Large gravel yard, heavily trafficked with trucks and forklifts.

The yard is approximately 20000 sqm which has loop roads within it.

​

Category   : Instant Dust Suppression

Location    : New Zealand

Industry    : Yards & Car Parks

Solution    : Yard Dust Suppression

Logo RDC   panatoone 358 copy.png

Product Used

RDC

RDC Kopu Mine Site  truck working.GIF

Mine Site, Dust Suppression & water saver

PROJECT- 2013

Dust Suppression over the summer season

The pavement conditions prior to treatment was very dusty, the aggregate was in a fair condition with an existing depth of around 50mm.  The mine has two types of material, a fine clay material on the Haul Road and gravel on the Service Road.

​

Category  : Instant Dust Suppression

Location   : New Zealand

Industry    : Mining, Forestry, Road

Solution    : Dust Minimization

Logo RDC   panatoone 358 copy.png

Product Used

RDC

XTM case

XTM

STRIP BG.jpg

XTM Case Study



PROJECT- 2020



Case Study coming soon. !!!



Category : Unsealed Road Stabilization

Location : New Zealand

Industry  : Rural Roading

Solution  : Stabilization Dust Control

XTM  logo .png

Product Used

XTM

Read More

HSC

HSC Spains Road view down road with GL T

Subgrade Stabilization & Pot hole Reapir

PROJECT- 2012
Spains Road in Kaitaia, Northland is built over a peat subgrade.  Peat is characterized by large porosity and low density with a large water and organic matter content causing issues such as dust, potholes, corrugations, heaving and gravel loss.



Category  : Road Pavement Stabilization

Location   : New Zealand

Industry    : Secondary Roading

Solution    : Stabilization

Logo HSC  panatoone reflex blue . copy.p

Product Used

HSC

HSC Mike Pero unsealed HSC Carpark.GIF

Car Park Stabilizing and Chip Seal

PROJECT-  2016

MIKE PERO MOTORSPORT PARK, CHRISTCHURCH, NZ



This extremely busy carpark was very dusty and the aggregate had worn out.

The scope of works was to initially stabilize the insitu aggregate and leave it unpaved.  However, after 2 years the contractor chip sealed the pavement without any further maintenance works and which is still in excellent condition to date.

​

​

Category  : Road Pavement Stabilization

Location   : New Zealand

Industry    : Yards & Car Parks

Solution    : Stabilization

Logo HSC  panatoone reflex blue . copy.p

Product Used

HSC

HSC Aperera haul road.GIF

Forestry Entrance Haul Road Stabilizing

PROJECT- 2014

To build a road using Gravel Lock’s HSC to equal the budget of existing construction method. This forest road had a very weak subgrade – brown rock over burden quarry run – which was failing under the logging traffic.  Per kilometre the standard construction on this road was using 1200 cubic metres of 100-150 aggregate in the sub-base and was overlaid with 900 cubic metres of gap 65.


Category  : Unsealed Road Stabilization
Location   : New Zealand
Industry    : Mining, Forestry, Road
Solution    : Stabilization Dust Control


Logo HSC  panatoone reflex blue . copy.p

Product Used

HSC

HSC Carter Holt Harvey truck going up hi

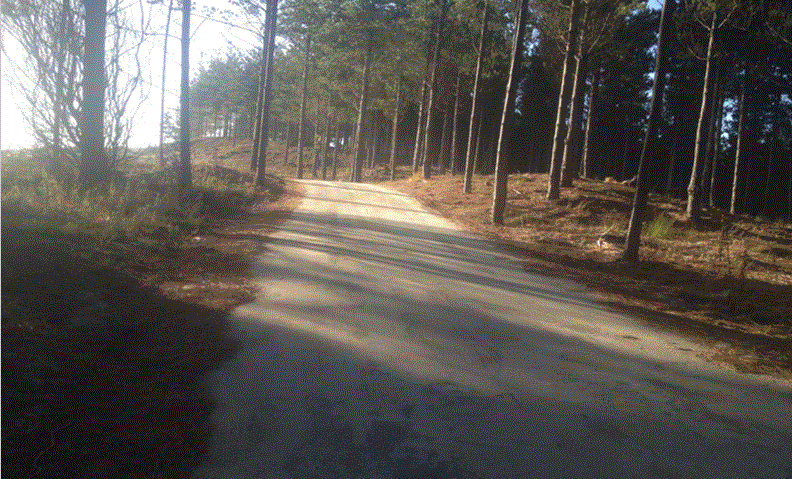

Carter Holt Harvey Haul Road Stabilizing

Carter Holt Harvey Haul Road Stabilizing
PROJECT- 2013
Improve the performance of the Failing Flexing Peat Subgrade.
Purpose: Stabilization/Dust Suppressant.
Prior to treatment aggregate consumption on this haul road was very heavy.  Using the insitu material on site for this installation, imported aggregates were reduced to nil.
​
Category  : Unsealed Road Stabilization
Location   : New Zealand
Industry    : Mining, Forestry, Road
Solution    : Steep Grade Stabilization

Logo HSC  panatoone reflex blue . copy.p

Product Used

HSC

HSC case
FCM case

FCM

FCM AUOTBARN.jpg

German Autobahn Stabilizing

PROJECT – 12TH August 2019

Mosel/Rhein-Hunsrück, is situated 4 hours north of Munich.  Normally in the winter months, autobahns are compromised by frost heaving and water ingress in the sub base layers



Category  : Road Pavement stabilization

Location   : Germany

Industry    : Highway Construction

Solution    : Pavement Stabilization

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Marsden Patch Repair FCM.GIF

Marsden Point Road, Highway Patching



PROJECT- 2012

Patch repairs in a sealed network.

Marsden Point is not only the main port for Northland but it houses New Zealand’s only Oil Refinery.  The Marsden Point Highway is the main arterial route for trucks to and from the hub. The pavement had begun to unravel and large potholes had formed.



Category  : Road Pavement Stabilization

Location   : New Zealand

Industry    : Highway Construction

Solution    : Soil Stabilization

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Guinnea Flexi Road man hand spreadin

Port Road, Guinea, Africa

PROJECT – 2020



REMEDIATION OF A FAILING PAVEMENT
The client needed to stabilize a very difficult access road to the main port through the town.  A high organic black cotton soil was causing issues such as potholes, corrugations, heaving etc.  The black soil was removed from the site and backfill was imported so construction of the site could begin.



Category  : Road Pavement Stabilization

Location   : Guinea, Africa

Industry    : Yards & Car Parks

Solution    : Port Entry Stabilization

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Dubai Sand Road shoulder.GIF

Dubai Sand Stabilizing

PROJECT – November 2018

The GCC countries (Bahrain, Kuwait, Oman, Qatar, Saudi Arabia and the United Arab Emirates) depend heavily on the outside world for the supply of most of their aggregates due to lack of resources.  Being able to stabilize insitu granular sand is a major breakthrough for these countries.  Flexi-C-Ment was used in Dubai to stabilize a pull off lane (shoulder) in an industrial roadway and also a loading construction bay used for the sale of aggregate.

​

Category   : Road Pavement Stabilization

Location    : Dubai

Industry     : Secondary Roading

Solution     : Sand Stabilizing

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Te Ari sand Stabilizing FCM.GIF

Golf Course Sand Stabilizing

PROJECT – May 2014 to October 2017

New Zealand's first-ever American-style private golf club with members handpicked to ensure the club maintained a laid-back, intimate vibe.  Located on the Te Arai coast on an enormous sand dune, the developers brief was to build roads that looked like sand.



Category   : Unsealed Road Stabilization

Location    : New Zealand

Industry     : Secondary Roading

Solution     : Stabilization

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Dampura Road India sides washed off.

Monestary Road, India

PROJECT – November 2015
Gravel Lock was approached to stabilize a newly formed road in Dharampur, Gujarat, one of the most sacred states in India.  The college/temple had been constructed over a failing undeveloped clay haul road that constantly required expensive maintenance works.  A 200mm gap 40/60 was laid down over the top of the existing roadway and the grader methodology was applied to this installation.
​
Category   : Road Pavement Stabilization
Location    : India
Industry     : Secondary Roading
Solution     : Stabilization

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Viterra grader working between bunke

Hardstand Stabilizing, Viterra

PROJECT – 2020

REHABILITATION OF EXISTING PAVEMENT

The scope of the project was to stabilize and bridge the underlying subgrade that was causing failure in the top pavement.  Water ingress was the main problem in this highly plastic material.



Category   : Road Pavement Stabilization

Location    : Australia

Industry     : Yards & Car Parks

Solution     : Stabilization

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Jaluit Runway the plane.GIF

Marshall Islands, Runways

PROJECT - 2018

This public use runway is on Jaluit Atoll, a coral formation in the Ralik (western) chain of the Republic of the Marshall Islands, situated in the west-central Pacific Ocean.  The Runway consists of crushed coral which had deteriorated over time resulting in loss of fines which in turn caused the pavement to deform and create potholes from poor drainage.



Category   : Unsealed Pavement Stabilization

Location    : Marshall Islands

Industry     : Runways & Heli Pads

Solution     : Coral Runway

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

FCM Wave Park Construction.GIF

Urban Surf Wave Park

PROJECT- 2018/19



Urban Surf Wave Park



Urban Surf Wave Park is a project designed to be a world-class tourism destination. It’s Australia’s first facility to offer a wave park for recreation, sports, emergency services training, school programs and youth development.  Gravel Lock is proud to provide the solution to this Company using recycled concrete over expansive silty clays with CBR’s of less than 1.5.



Category   : Pavement Stabilization

Location    :  Melbourne, Australia

Industry     : Specialized Projects

Solution     : Wave Park Floor

Logo flexi cement panatoone 165 copy.png

Product Used

FCM

CSC Case

CSC

CSC man spraying polymer.GIF

Erosion Control & Dust Capping

PROJECT- 2014

This 28km long 4 lane wide highway was one of the largest projects being constructed in New Zealand at the time.  The highway was constructed over weak subgrades so it needed to be preloaded with millions of tons of sand and soil requiring strict environmental controls. Gravel Lock was proud to be a key supplier of CSC dust capping and erosion control in the Tauranga Eastern Link project.

​

Category   : Un-traffic Erosion Dust Capping

Location    : New Zealand

Industry     : Highway Construction

Solution     : Dust Capping and Erosion Control

Logo CSC panatoone 358 copy.png

Product Used

CSC

PHF case

PHF


Give Way Intersection

PROJECT- 2018


This rest area is situated just off a very busy highway and experiences extreme amounts of through traffic on a daily basis.  The Give Way area is prone to unravelling and potholing which causes road users to experience a negative experience when leaving this complex.  Gravel Lock put down a trial of PHF Coldmix Pothole Fill, in the middle of winter, next to traditional fill for the owner to assess the viability and longevity of the product. The PHF is still strong and well bound after 2 years!

​

Category : Pothole Repair

Location :  Marsden Point, New Zealand

Industry  : Road Repair

Solution  : Pothole Repair


Product Used

PHF

phf front cover.jpg

Car Park Entrance

PROJECT- 2018



This busy entrance/exit way of a shopping complex was experiencing reoccurring potholes.  Traditional pothole fill  was not lasting and falling out within weeks of being installed.  Gravel Lock undertook works with the Owner of Big Tomato Complex to install PHF to the existing potholes in the entrance way.  This busy shopping centre experiences hundreds of car movements each day pulling in from an arterial thoroughfare which was becoming dangerous for the customers.

​

Category : Pothole Repair

Location :  Marsden Point, New Zealand

Industry  : Road Repair

Solution  : Pothole Repair


Product Used

PHF
